Egal Electrical Calculations is a Windows productivity app from Egal Net di Ettore Gallina for electrical installers, designers and electricians. It brings a broad set of electrical and motor calculations together with conversion tools and technical reference material.
It can be useful during installation work or electrical design: run calculations in the relevant area of the app, then consult its tables or connection references when needed. The listed calculations support IEC, CEI, NEC and CEC standards.
Electrical and electronics calculations
Electrical systems

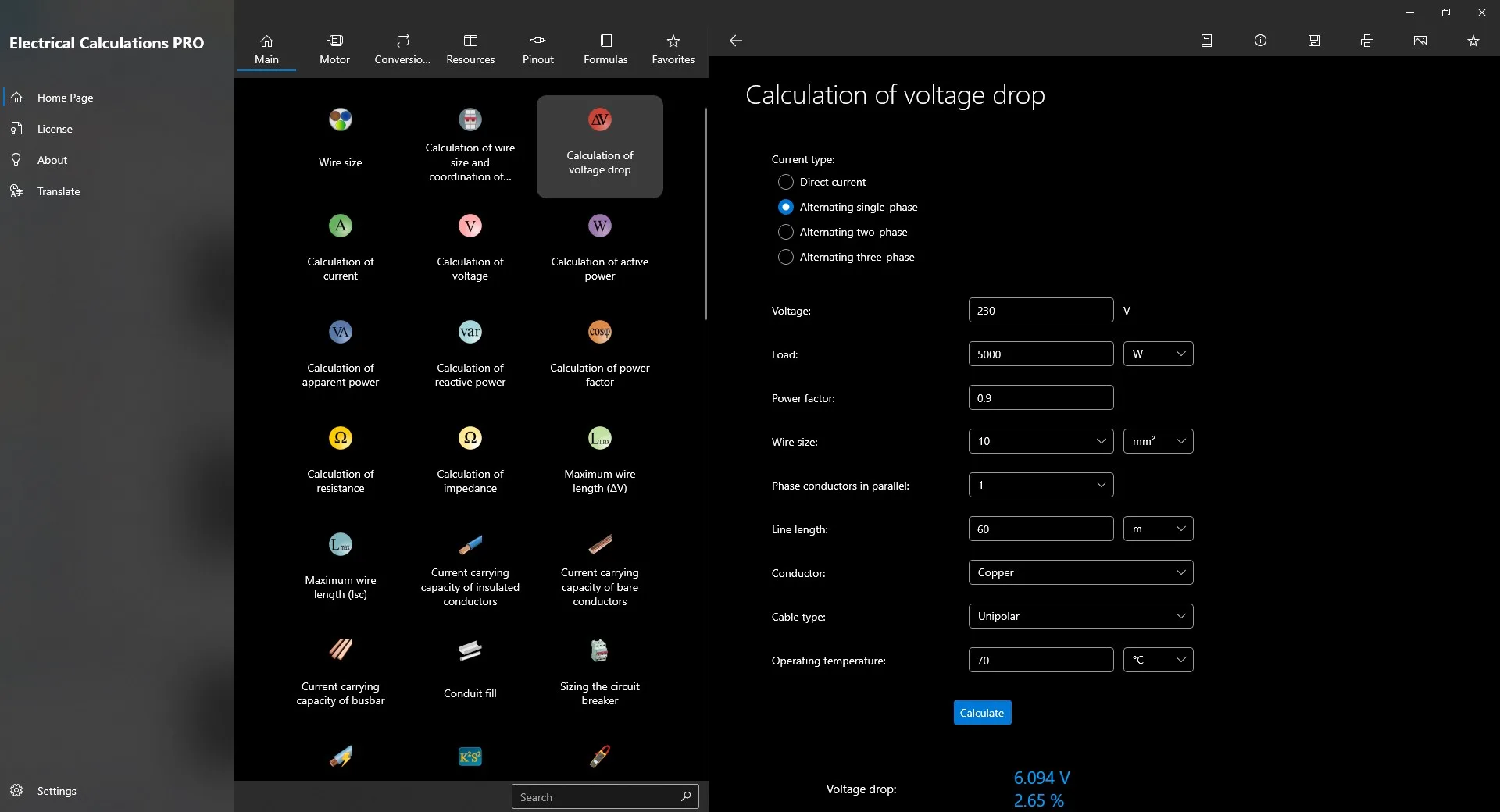

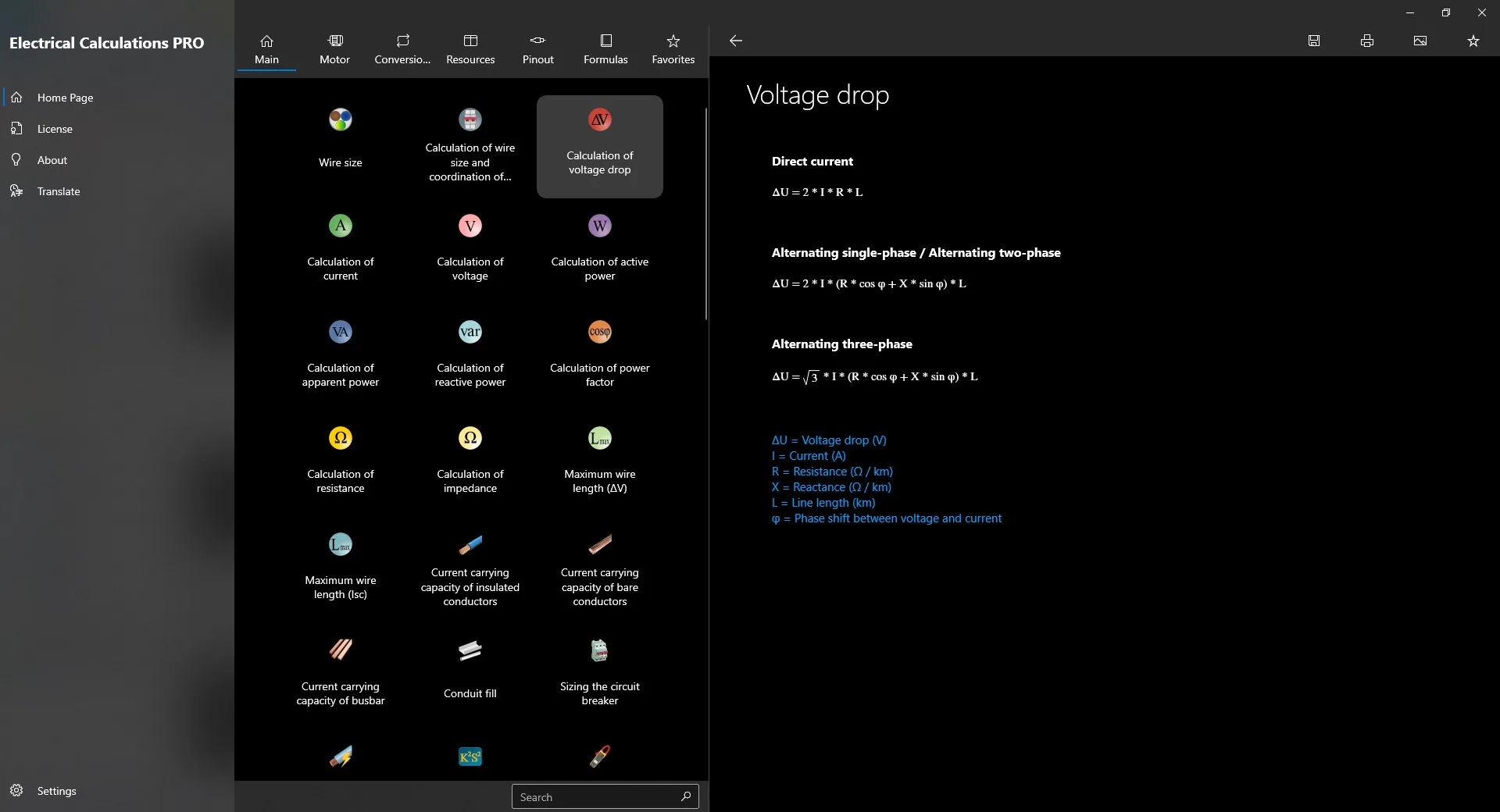

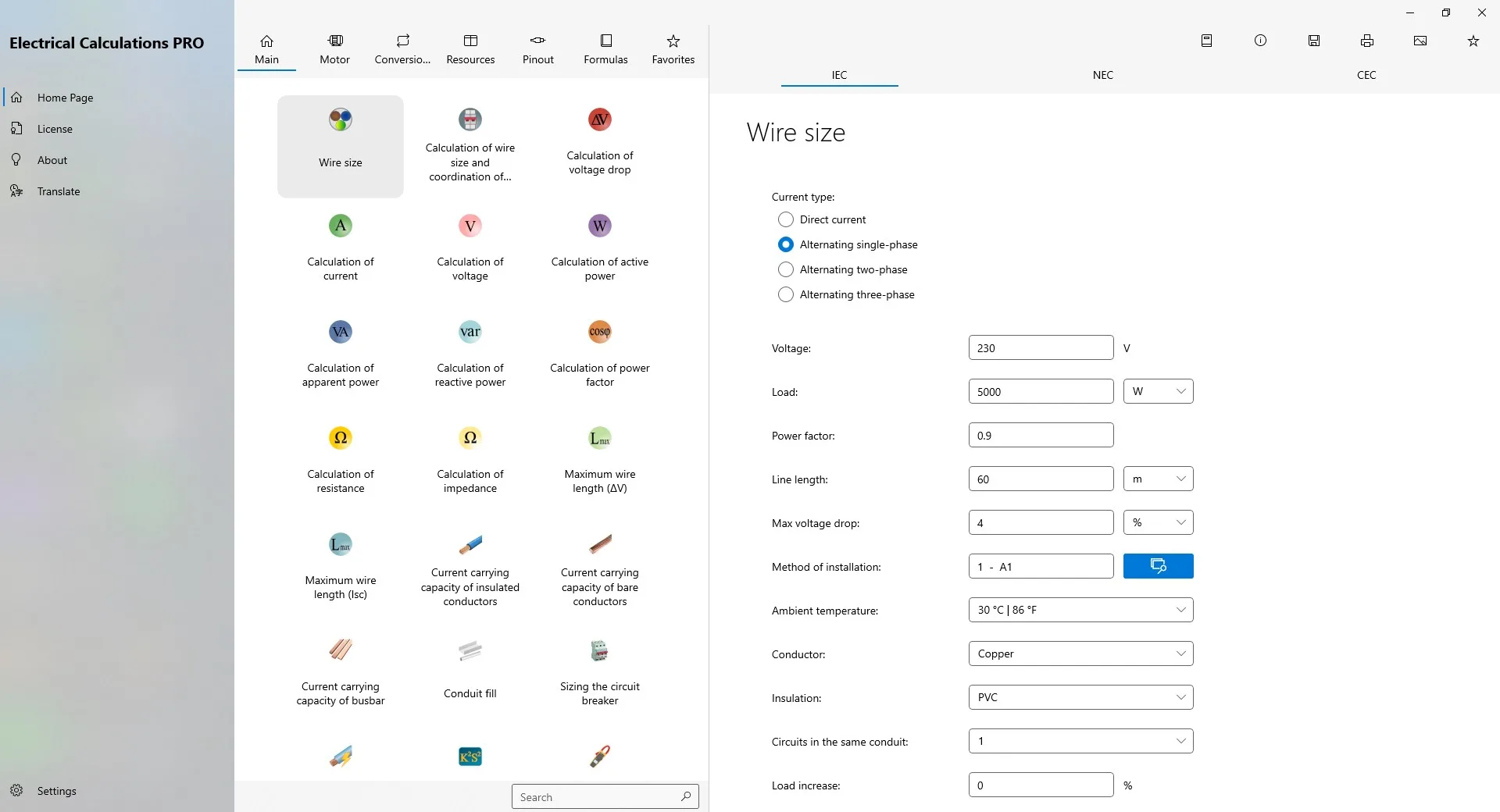

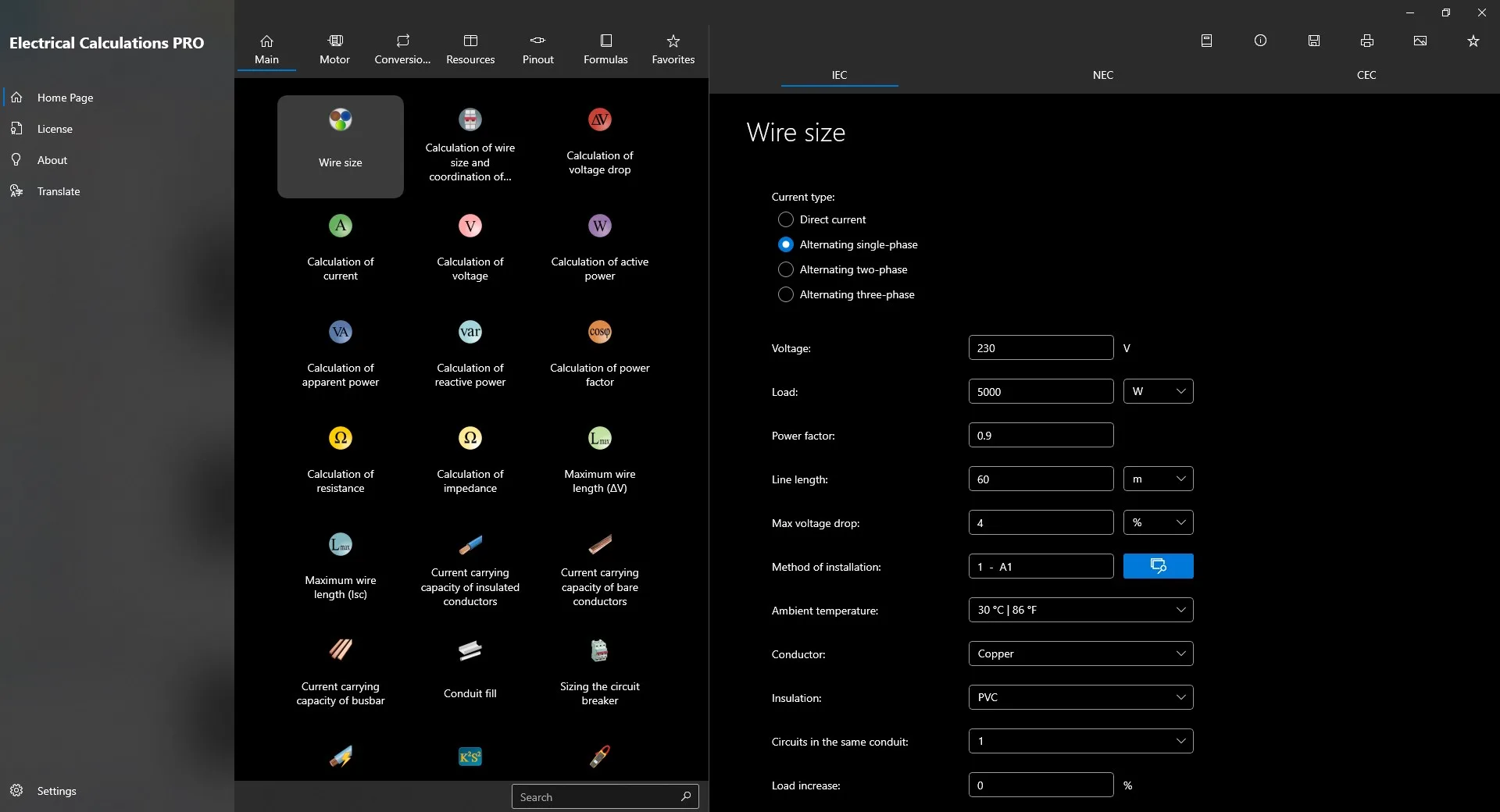

- Conductor sizing, voltage drop, current and voltage; active, apparent and reactive power; power factor; resistance, impedance, maximum wire length and operating current.
- Earthing systems, minimum short-circuit current and conductor resistance.
- PRO: Current-carrying capacity of insulated conductors, bare conductors and busbars; conduit fill; circuit-breaker sizing; admissible cable let-through energy (K²S²); reactance; impedance derived from resistance and reactance; power-factor correction, including for MV/LV transformers; capacitor power at different voltages; maximum short-circuit current, including with a transformer substation; cable temperature; and cable power losses.
Components and applied calculations

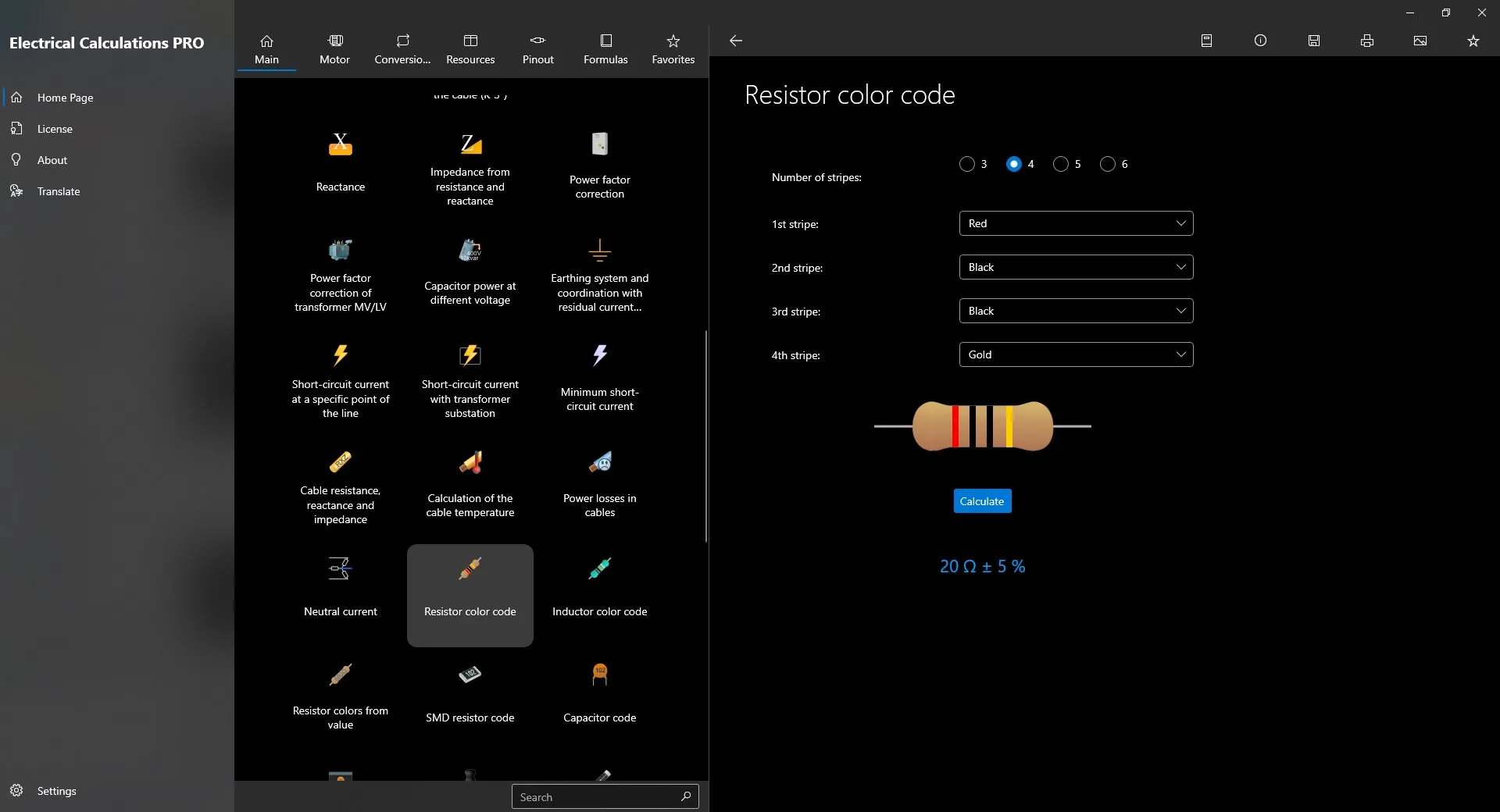

- Resistor color codes and resistor colors from value, SMD resistor codes, inductor color codes and alphanumeric codes, capacitor codes, fuses, resistor and capacitor sums, resistance to reduce voltage, resistance for an LED, battery life, primary and secondary transformer windings, antenna length, CCTV hard-drive and bandwidth calculations, and the Joule effect.
- PRO: Resonant frequency, voltage and current dividers, a Zener diode as a voltage stabilizer, temperature sensors (PT/NI/CU, NTC and thermocouples), analog signal values, atmospheric overvoltage risk assessment and fault current of strings.
Motor calculations and diagrams
- Motor current, power, voltage, power factor and efficiency; three-phase-to-single-phase motor conversion; single-phase capacitor-start motors; three-phase motor diagrams for 6, 9 and 12 leads; motor connections; motor terminal markings; and motor insulation classes.
- PRO: Motor speed, slip, power and maximum torque, and full-load current.
Unit conversion tools
- Power, conductor cross-section, length, voltage amplitude, energy, temperature, pressure, Ah to kWh, Gauss to Tesla, RPM/rad/s/m/s, frequency and angular speed, torque, bytes and angles; AWG and SWG tables; and imperial-to-metric conductor-size comparison.
- PRO: Δ-Y conversion, sin/cos/tan/φ conversion and VAr/µF conversion.
Reference tables and connection information
Technical resources
- Fuse application categories and UL/CSA fuse classes; standard resistor values and tripping curves; resistivity and conductivity; unitary voltage drop; cable dimensions and weight; IP/IK/NEMA protection classes; appliance classes; CCTV resolutions; thermocouple color codes and data; electrical symbols; electricity around the world; plug and socket types; IEC 60320 connectors; C-form sockets (IEC 60309); NEMA connectors; EV charging plugs; wiring color codes; SI prefixes; units of measurement; and pipe dimensions.
- PRO: Cable reactance table, ATEX marking and ANSI standard device numbers.
Pinouts
- Ethernet wiring (RJ-45), Ethernet with PoE, and RJ-9, RJ-11, RJ-14, RJ-25 and RJ-48.
- SCART, USB, HDMI, VGA, DVI, RS-232, FireWire (IEEE 1394), Molex, SATA, DisplayPort, PS/2 and Thunderbolt.
- Apple Lightning, Apple Dock Connector, Raspberry Pi, LCD 16×2 displays, SD cards and SIM cards.
- Fiber-optic color code, LED pinout, ISO 10487 car audio, OBD II, XLR (Audio/DMX), MIDI, jack connectors, RCA color coding and IO-Link.
Access and installation
The app is free to install. Its free version provides basic calculations and displays ads. A PRO subscription unlocks the advanced tools marked above and removes ads; a 7-day free trial includes all PRO features.
The app can generate reports in PDF and printable formats. To install it on Windows, click Download on this page to open its Microsoft Store listing. Check that the app is Egal Electrical Calculations and the developer is Egal Net di Ettore Gallina, then select Install.
