Learn Electronics Simulator is a Windows learning app for exploring how digital circuits behave. Change inputs and watch outputs respond, then use the included circuit examples to connect logic-gate concepts with arithmetic, timing and practical projects. Its 75+ simulations and 44-chapter learning path suit electronics students, exam preparation, classroom demonstrations and hobbyists learning before building circuits.
Explore circuits by topic
The learning path can be followed from start to finish or used to open a topic directly. It covers:

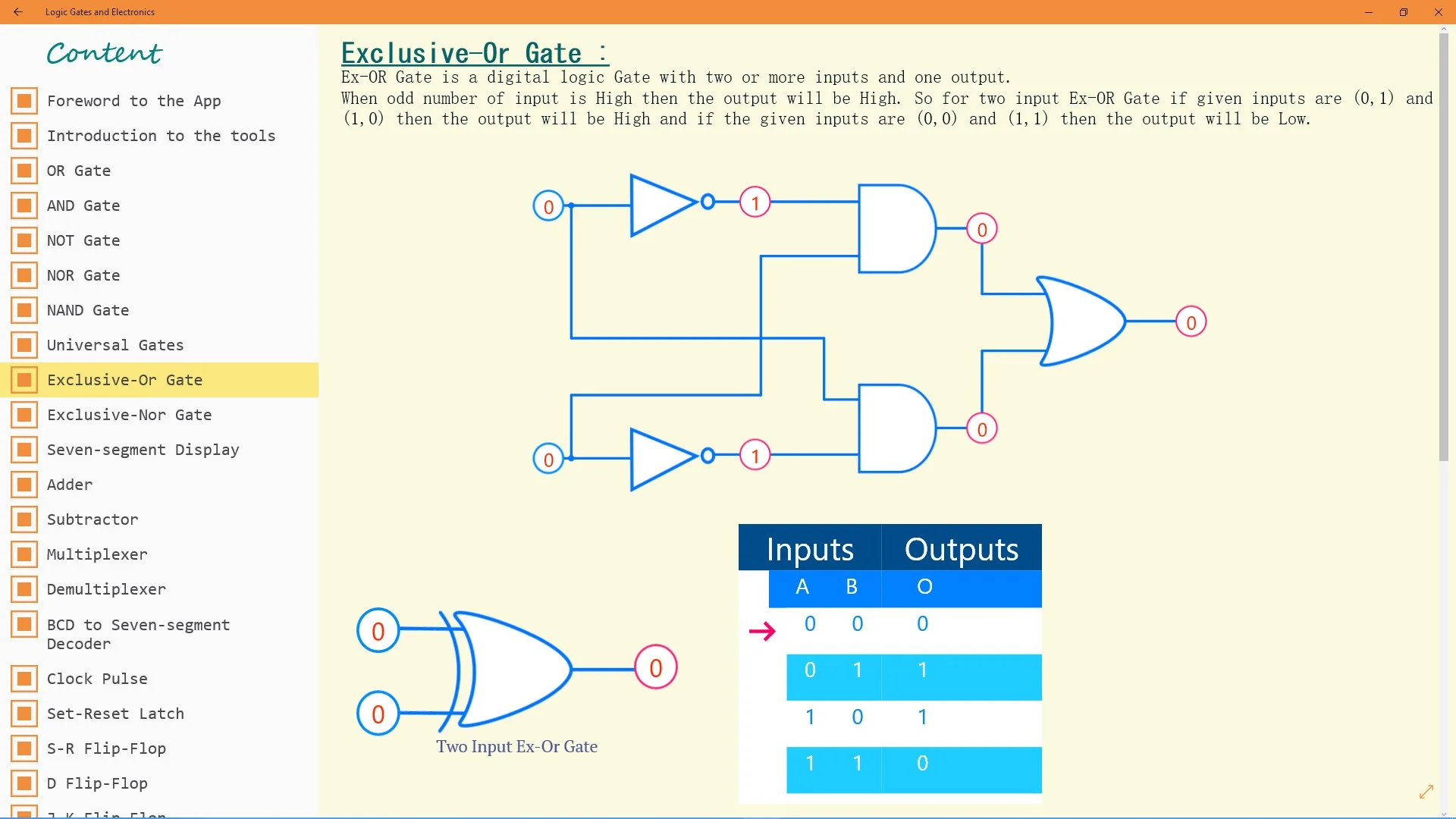

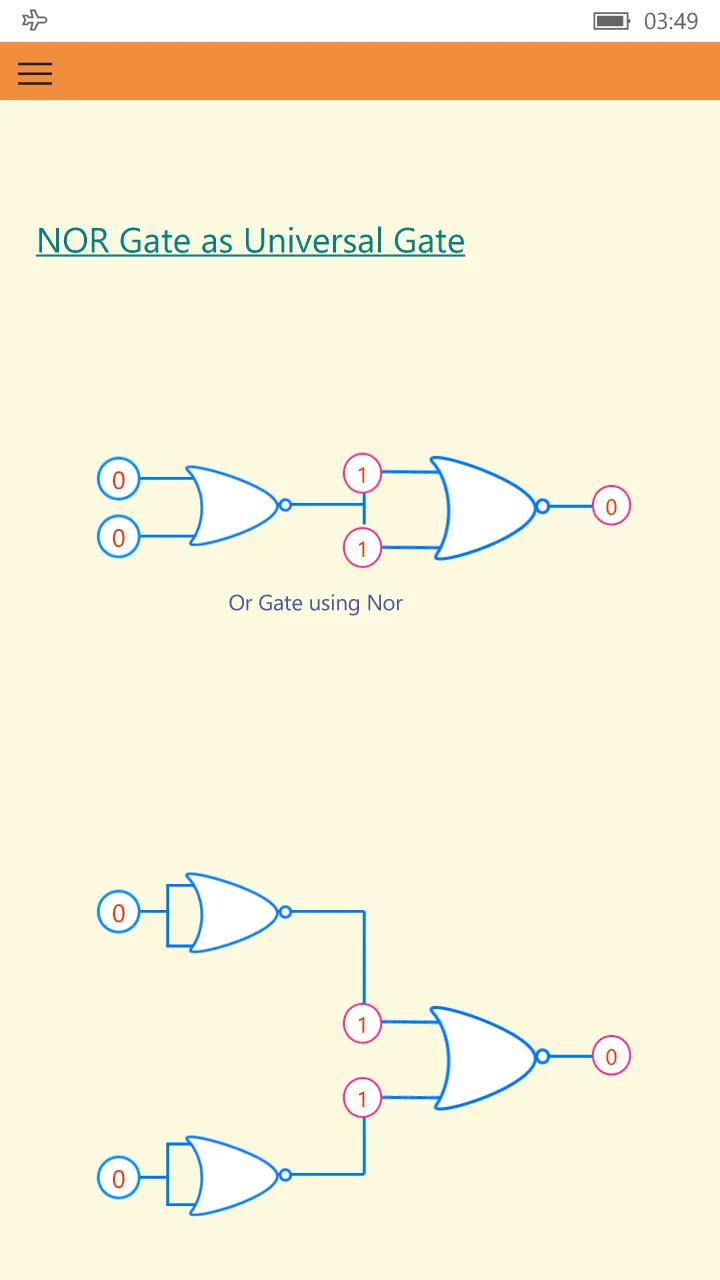

- Logic gates: AND, OR and NOT gates with 2 to 5 inputs; NAND and NOR gates with propagation-delay modelling; and XOR and XNOR gates. Live truth tables highlight the row that matches the current inputs.
- Arithmetic circuits: Half Adder, Full Adder in standard and NAND-based versions, Parallel Binary Adder, Serial Binary Adder, Half Subtractor, Full Subtractor, Parallel and Serial Binary Subtractors, and a 4-bit Parallel Multiplier. A binary-to-decimal panel shows decimal equivalents as operations change.
- Combinational circuits: 4-to-1 Multiplexer, 1-to-4 Demultiplexer, 2-to-4 and 3-to-8 Decoders, Decimal-to-Binary and Octal-to-Binary Encoders, and a BCD-to-7-Segment Decoder.

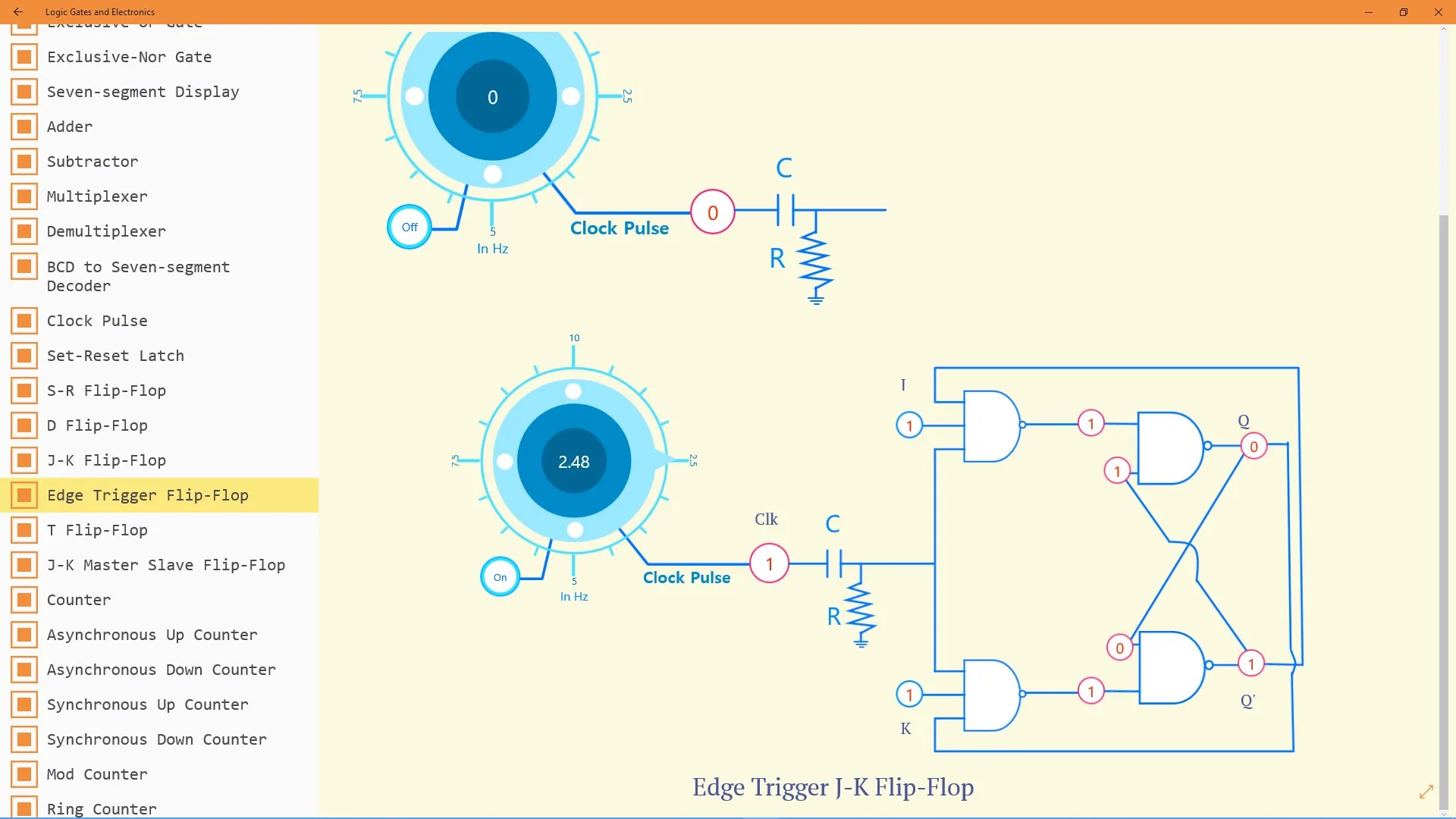

- Flip-flops: NOR and NAND SR Latches, Clocked SR, five D Flip-Flop variants including Preset and Clear, J-K Flip-Flop, Edge-Triggered J-K, J-K Master-Slave with Preset and Clear, and T Flip-Flop. Waveforms display clock and output signals over time, with a time-per-division scale.

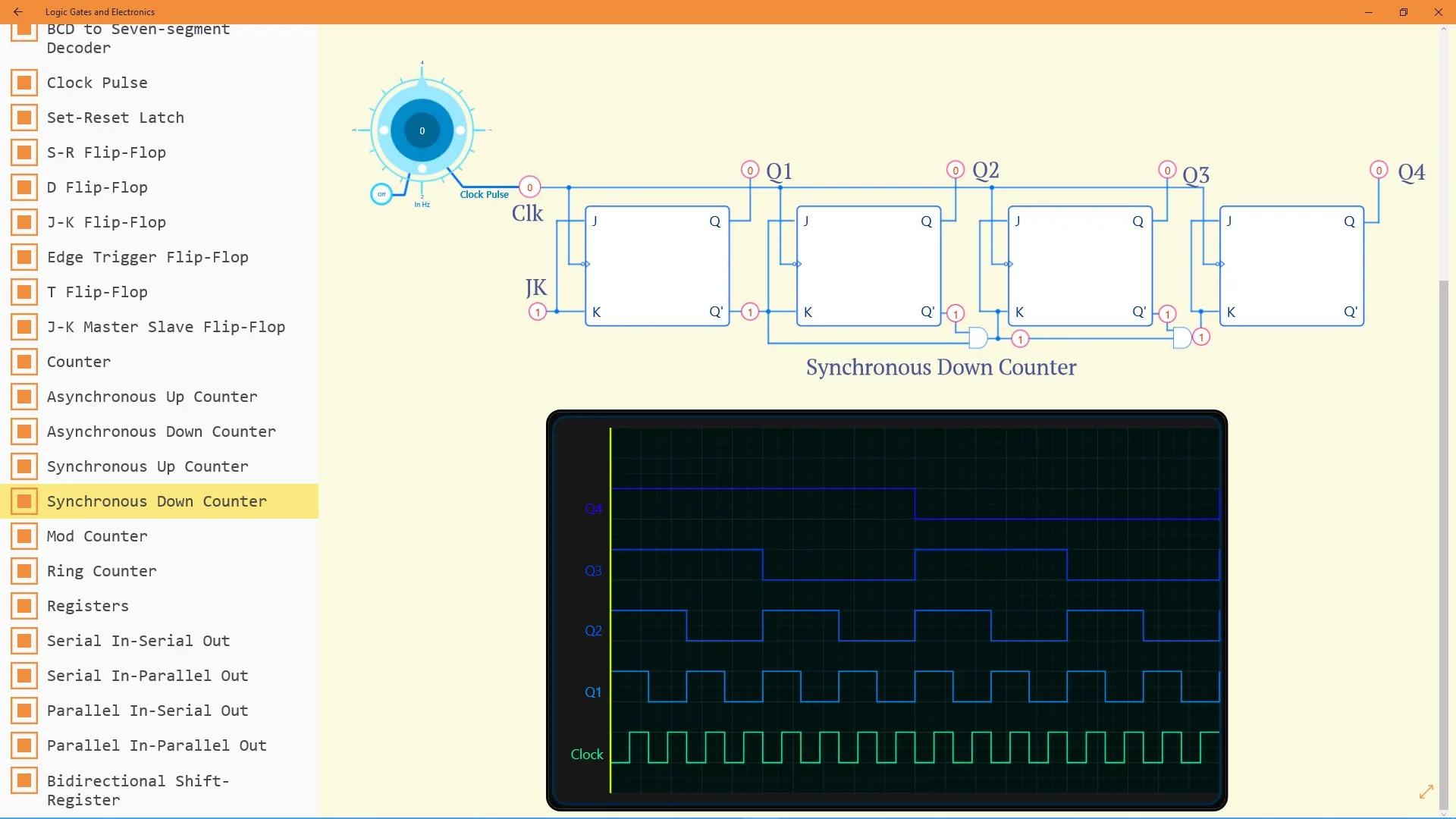

- Counters: Asynchronous and Synchronous Up/Down Counters, Mod-3, Mod-5, Mod-6 and Mod-10 Counters, plus 8-bit Ring and Johnson Counters. Follow how the binary count changes with each clock pulse.
- Shift registers: 16-bit SISO, 16-bit and 4-bit SIPO, PISO and PIPO registers, a Bidirectional Shift Register and a Universal Shift Register. The simulations show bits moving through the flip-flop chain.
Tools and hands-on examples

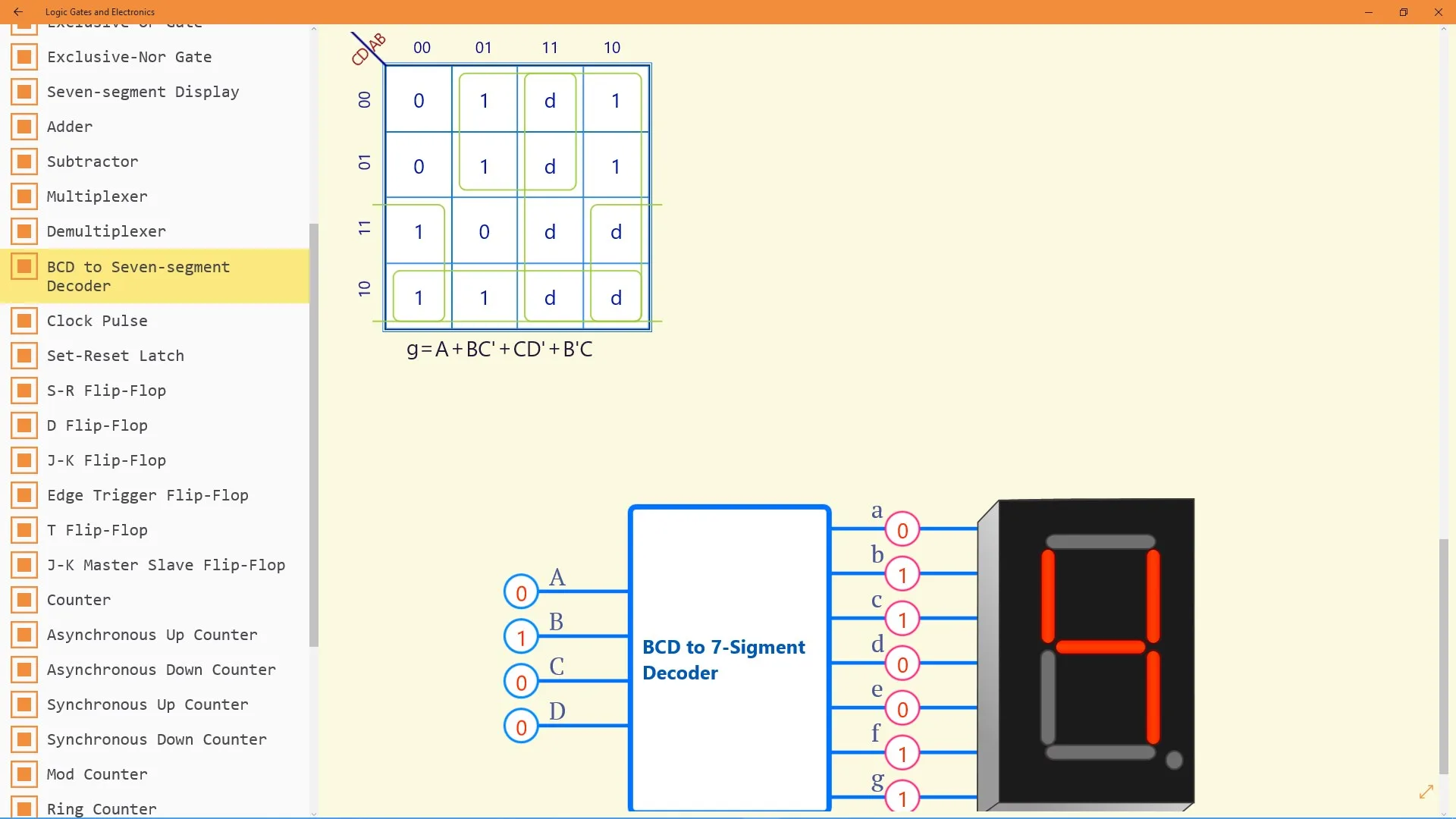

Karnaugh maps use coloured loops to show minimized Boolean expressions. A built-in search helps locate a circuit by keyword, such as adder, counter, flip-flop or mux. Four project demonstrations apply the concepts: Counting with 7-Segment Display, Spinning LED Effect using Ring and Johnson Counters, Color Changing Christmas Light, and a 32-output Scrolling LED Display.
These tools support different study tasks: use the truth tables to check how input combinations affect a gate, inspect waveforms to follow changing signals, or try a project to see several circuit ideas working together. The simulations also provide a way to explore circuit behaviour before attempting to build physical circuits.
Offline use and purchase
The app works offline, so its simulations can be used without an internet connection. It is a paid app with a seven-day free trial and a one-time purchase option; it has no subscription, ads or tracking.
